- WPM GR86 / Gen 2 BRZ Clubsport Half Cage
WPM In-House Development
WPM GR86 / Gen 2 BRZ Clubsport Half Cage
$2,445.00

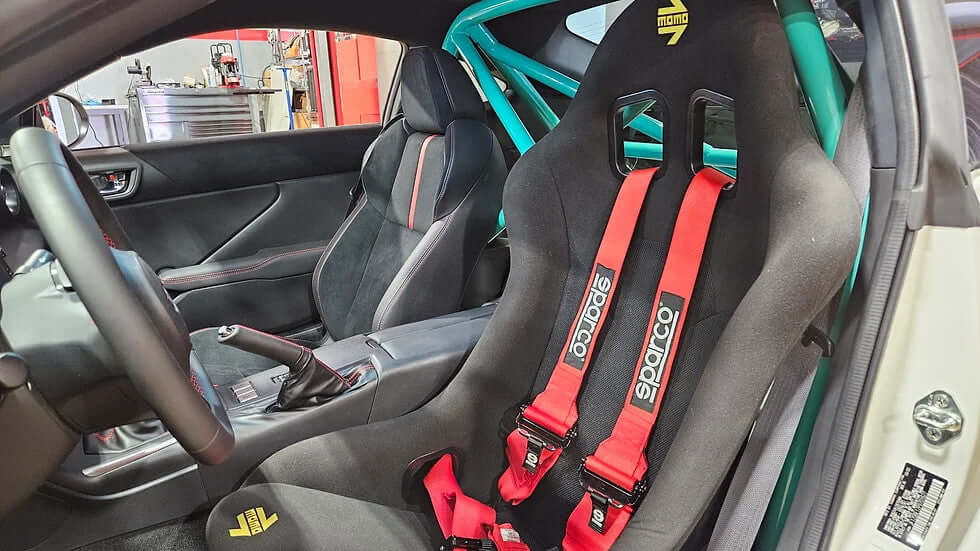

A Docol R8 roll bar for the Toyota GR86 and Gen 2 Subaru BRZ (ZN8) that mounts the main hoop to weld-in plates at the factory side impact beam, not to a single stud. The removable cage bolts to those plates; rear mounts tie into the wheel tub and shock-tower area.
- 1.75" × .095" main hoop and rear bow bars, 1.5" × .085" bracing; TIG welded
- Weld-in main hoop plates; the bar bolts to them
- Rear base plates tie into the wheel tub and rear shock top hat
- Low-profile plates can hide under OEM trim if the bar comes out
- Shares WPM’s ZN6/ZN8 modular platform design—ask about conversion plates if you change generations
Non-sunroof cars only. Made to order in the USA.
Why We Built It This Way.
Workshop
Designed and built in the WPM workshop.
Fitment
Designed around OEM hard points and cabin geometry.
Design
CAD-driven packaging for install clarity.
Technical Specifications.
Built around OEM hard points with materials and geometry chosen for track duty—not showroom appearance.
View specifications
- Material
- Docol R8 tubing
- Main hoop and rear bow bars
- 1.75" × .095"
- Bracing
- 1.5" × .085"
- Construction
- TIG welded; bolted joints with billet interlocking connectors
- Gussets
- Included
- Ships as
- Multiple pieces, with billet interlocking connectors
- Mounting
- Weld-in base plates; the bar bolts to the plates
- Hardware
- Included
- Sunroof cars
- Not compatible
- OEM seats and 3-point belts
- Retained
- Made in
- USA, made to order
In-house design
Fitment & Installation.
Clearance, mounting, and install sequence are designed around real chassis packaging—not a generic tube kit.
Learn moreProduct & Fitment FAQ.
Answers to common product and project questions.
How do I confirm this fits my car?
Every WPM half cage is built for non-sunroof cars. ZN6 and ZN8 half cages are interchangeable. New weld-in plates are available at no cost if you move the bar to another car. Email your year, chassis, and options before you order and we will answer directly. Ask a fitment question.
Does install require drilling, welding, or trim removal?
Yes, welding. Base plates are welded to the chassis, and the bar bolts to them. Professional installation is heavily recommended.
What finish options are available?
Standard finish is satin black powdercoat. Custom is any color from Prismatic Powders. Select Custom, type the Prismatic code and color name on this product (for example, PSS-11632 Porsche Speed Yellow), then add to cart. Do not put the color on the order note. Standard and Custom are the same price.
How long is transit after it ships?
Once it ships, transit is usually 3–5 days, subject to change.
Can I cancel my order?
Yes, until the cage is powder coated. After powder coat, the order cannot be cancelled.
Can WPM install it?
Yes. Professional installation is heavily recommended, and WPM installs in-house. Ask about WPM installation.
Can I run this in my racing series?
All WPM parts are sold for off-road use only. Reach out with your application and we will walk you through how our products can meet your ruleset. Contact WPM.
